RAMSES 741

Description

  • Room temperature controller with thermal feedback
  • Supplied as replacement device without frame, central part and setting button, incl. protective cap
  • Frame, central part and setting button available as accessories
  • Central part fits nearly all frames using an adapter frame from the switch manufacturer
  • Ideal controller for refurbished and new build properties

Technical data

Operating voltage 230聽鈥撀240 V AC
Frequency 50聽鈥撀60 Hz
Type of contact NC contact
Switching capacity

10 A (at 230 V AC, cos 蠁 = 1), 4 A (at 230 V AC, cos 蠁 = 0.6), ,

Setting range temperature +5 掳C聽鈥β+30 掳C
Function Mechanical
Hysteresis 鈥
Control accuracy approx. 0.5 K, thermal recirculation
Test approval VDE
Installation type Flush-mounted
Protection class II according to EN 60 730-1

Connection example

RAMSES 741

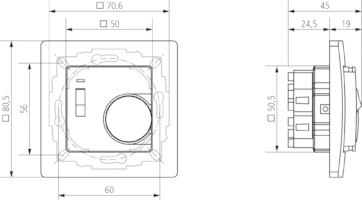

Scale drawings

RAMSES 741
