theLeda E10 BK
Description
- LED spotlight with motion detector
- 1 LED spot with 10 W
- Suitable for outdoor use
- Automatic lighting control based on presence and brightness
- 180掳 detection angle at a detection range of 12 m
- Sensor head can be turned by 卤 90掳 horizontally and 90掳 downwards
- Spotlight can be swivelled 45掳 downwards and 90掳 upwards
- Area limit via stickers
- Adjustable lux value and switch-off delay
- Settings can be changed without tools
- Manually switching on possible
- Optional purely twilight-dependent control
- Not suitable for dimming application
Technical data
| Operating voltage | 230 V AC |
| Frequency | 50聽鈥撀60 Hz |
| Stand-by consumption | ~0,5 W |
| Light measurement | Mixed light measurement |
| Installation type | Wall installation |
| Setting range brightness | 2聽鈥撀200 lx |
| LED output (lighting current) | 685 lm |
| Colour temperature | 5000 - 5600 K |
| Detection angle | 180掳 |
| Recommended installation height | 2聽鈥撀4 m |
| Light switch-off delay聽 | 5 s-10 min |
| Ambient temperature | -20 掳C聽鈥β+40 掳C |
| Protection class | I |
| Type of protection | IP 55 |
Connection example
 \n\n你要从服务器上打开它吗？'))window.location='http://www.theben.de/var/theben/storage/ilcatalogue/files/images/image.connection-diagram.lightbox_IM0001347.EPS.gif')
|

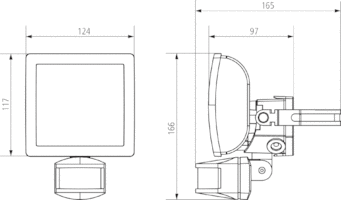

Scale drawings
 \n\n你要从服务器上打开它吗？'))window.location='http://www.theben.de/var/theben/storage/ilcatalogue/files/images/image.dimension-diagram.lightbox_IM0001874.EPS.gif')
|
Detection range
| Mounting height (A) | Head on to (r) | Diagonally (t) |
|---|---|---|
| 2,5 m | 4 m | 12 m |
 \n\n你要从服务器上打开它吗？'))window.location='http://www.theben.de/var/theben/storage/ilcatalogue/files/images/image.detection_area.lightbox_IM0001852.EPS.gif')
|
Variants
| Article number | Data sheet | Documents basket | ||
|---|---|---|---|---|
| ||||
theLeda E10 WH |
||||
| 1020911 | ||||
| more | ||||
