SPHINX 104-360/2 DIMplus

Description

Presence detector (PIR)
2 channels for application areas class and conference rooms
Flush-mounted installation
Channel 2 presence dependent, e.g. for blackboard lighting with programmable switch-off delay or for HVAC control
Channel 1 for constant light control (1-10 V)
Lighting control with adjustable light threshold value and adjustable switch-off delay
Additional pulse function can be selected for combination with staircase timer (ELPA), building automation or PLC
Test function for checking detection area
Zero-cross switching
Automatic lighting control based on presence and brightness
Detection area can be limited using three enclosed segments
Mixed light measurement suitable for the control of fluorescent, incandescent and halogen lamps
Instant start-up possible via factory preset
Push-button or for manual switching
Fully or semi-automatic: In "Fully automatic" mode, the lighting switches on and off automatically according to presence and light In "Semi-automatic" mode, it must be switched on manually and it switches off automatically

Operating voltage	230 V AC
Frequency	50聽鈥撀�60 Hz
Stand-by consumption	~1 W
Light measurement	Mixed light measurement
Number of channels	2
Type of contact	NO contact

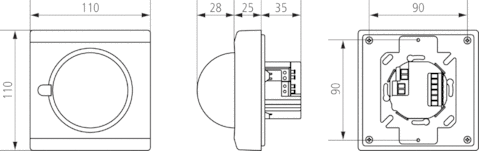

Installation type	Ceiling installation
Setting range brightness	5聽鈥撀�2000 lx
Switching capacity light	4 A (at 230 V AC, cos 蠁 = 1)
Switching capacity presence	2 A (cos f = 1)渭, 250 V AC/30 V DC
Detection angle	360掳
Recommended installation height	2,5聽鈥撀�3,5 m
Switching output	Not potential-free (230 V)
Switching output channel presence	Potential-free
Light switch-off delay聽	1 s 鈥� 20 min
Presence switch-off delay	1 鈥� 120 min
Incandescent lamp load	1000 W
Incandescent lamp load channel presence)	400 W
Fluorescent lamp load (conventional) not corrected	900 VA
Fluorescent lamp load (conventional) not corrected (channel presence)	200 VA
Fluorescent lamp load (conventional) series-corrected	900 VA
Fluorescent lamp load (conventional) series-corrected (channel presence)	200 VA
Fluorescent lamp load (electronic ballast)	400 VA
Fluorescent lamp load (electronic ballast) (channel presence)	60 VA
Energy saving lamps	4 x 7 W, 3 x 11 W, 3 x 15 W, 3 x 20 W, 3 x 23 W
Energy saving lamps (channel presence)	2 x 7 W, 2 x 11 W, 1 x 15 W, 1 x 20 W, 1 x 23 W
LED lamp	< 2 W = 25 W or > 2 W = 90 W
Lamps	Incandescent/halogen lamps, fluorescent lamps, Energy saving lamps, LEDs
Ambient temperature	-10 掳C聽鈥β�+55 掳C
Protection class	II
Type of protection	IP 40
