BZ 142-3
Description
- Hour counter with synchronous motor drive
- With plug-in base for wall installation (terminal cover required)
- Plug-in base with quick fastening for 35 mm profile rails (DIN EN 60 715)
- Screw terminals
- Contact protection to comply with accident prevention regulation BGV A3
- Housing colour: anthracite
- Versions for direct voltage with quartz-controlled stepper motor
- Progress display
Technical data
| Operating voltage | 230 V AC |
| Frequency | 50 Hz |
| Installation type | Front panel installation |
| Size front plate | 48 x 48 mm |
| Size of Installation section | 46 x 46 mm |
| Counting range | 99 999,99 hours without reset |
| Type of protection | IP 65 (Front frame) |
| Protection class | II according to EN 60 335-1 |
| Ambient temperature | -20 掳C聽鈥β+70 掳C |

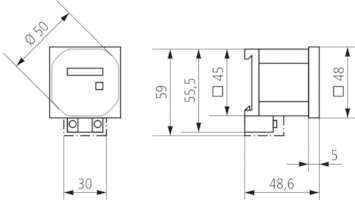

Scale drawings
 \n\n你要从服务器上打开它吗？'))window.location='http://www.theben.de/var/theben/storage/ilcatalogue/files/images/image.dimension-diagram.lightbox_IM0000424.EPS.gif')
|
Variants
| Article number | Data sheet | Documents basket | ||
|---|---|---|---|---|
| ||||
BZ 142-3 10V |
||||
| 1420823 | ||||
| more | ||||
