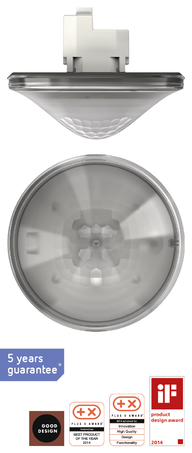

thePrema P360-101 UP GR

Description
Technical data
Detection range
Connection example
Scale drawings
Accessories
Downloads
Variants

Description

Passive infrared presence detector for ceiling mounting
Square detection area 360掳 (up to 100 m²) for reliable and easy planning
Automatic presence- and brightness-dependent control for lighting and HVAC
Mixed light measurement suitable for fluorescent lamps (FL/PL/ESL), halogen/incandescent lamps and LEDs
Light measurement can be switched to spot or wide measurement
Channel A, light: relay, 230V
Choice of fully or semi-automatic operation
Adjustable brightness switching value, teach-in function
Self-learning time delay
Reduction of switch-off delay time in the event of short presence (brief-presence)
Connection option for sensors or switches for manual switching with automatic recognition of sensor/switch
Pulse function for staircase light time switch
Channel H, presence: relay, floating
e.g. for HVAC control
Switch-on delay and switch-off delay configurable
Room monitoring with selective movement detection
Ready for immediate use due to factory preset
Exceptionally easy configuration of the energy-saving behaviour with the new 芦eco plus禄 function
Test mode for checking function and detection area
Extension of detection area via Master/Slave or Master/Master switching, a maximum of 10 detectors can be switched in parallel with each other
Ceiling installation in flush-mounted socket
Ceiling installation also possible with surface-mounted frame
User remote control theSenda S, management remote control SendoPro (optional)
* According to warranty terms and conditions, see www.theben.de/en/guarantee

Technical data

Operating voltage	230 V AC 卤 10 %
Frequency	50 Hz
Recommended installation height	2聽鈥撀�3,5 m
Minimum height	> 1,7 m
Installation type	Ceiling installation
Power consumption	~0,5 W
Light measurement	Mixed light measurement
Setting range brightness	5聽鈥撀�3000 lx
Light switch-off delay聽	10 s 鈥� 60 min
Type of contact light	Relay 230 V/10 A 碌-contact
Lamps	Incandescent/halogen lamps, fluorescent lamps, Energy saving lamps, LEDs
Incandescent/halogen lamp load	2300 W
Compact and flourescent lamps	1150 VA (cos 蠁 = 0,5)
Inrush current	max. 400 A / 200 碌s
Compact and flourescent lamps (Number of electronic ballasts)	16 x 54/58 W, 24 x 35/36 W, 8 x 2 x 54/58 W, 12 x 2 x 35/36 W
LED lamp	< 2 W = 25 W or > 2 W = 70 W
Switch-on delay presence	0 s聽鈥撀�10 min / Room surveillance
Presence switch-off delay	10 s 鈥� 120 min
Type of contact presence	Relay potential-free
Switching capacity presence	50 W / 50 VA (max. 2 A), min. 0,5 mV / 10mA
Type of connection	Screw terminals
Max. cable cross section	max. 2 x 2,5 mm虏
Size of concealed housing	脴 55 mm (NIS, PMI)
Ambient temperature	+0 掳C聽鈥β�+50 掳C
Type of protection	IP 40 (when fitted)

Connection example

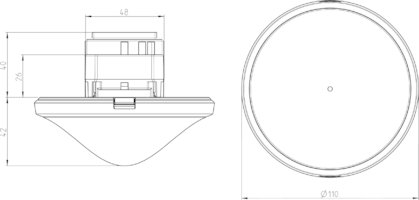

Scale drawings

Detection range

Mounting height (A)	Sitting (S)	Walking (T)
2 m	20 m虏 \| 4,5 m x 4,5 m	36 m虏 \| 6 m x 6 m 卤 0,5 m
2,5 m	36 m虏 \| 6 m x 6 m	64 m虏 \| 8 m x 8 m 卤 0,5 m
3 m	49 m虏 \| 7 m x 7 m	81 m虏 \| 9 m x 9 m 卤 1 m
3,5 m	64 m虏 \| 8 m x 8 m	100 m虏 \| 10 m x 10 m 卤 1 m
5 m	鈥�	144 m虏 \| 12 m x 12 m 卤 1,5 m
10 m	鈥�	400 m虏 \| 20 m x 20 m 卤 2 m
